M2 back to life

[willknot37 (Yamete)]

thank to this post my old m2 have back to life

Helical antenna problem?

Hi, my M2 doesn’t “see” any satellites as of 24/12. I use the Helical antenna. Tried 3 different cables with the same result. I was using firmware v27.0 and updated to 28.1 but nothing changed. The M2 boots normally. Nothing notable happened from the last time I used the M2. Is there a way to check if the Helical Antenna works properly?

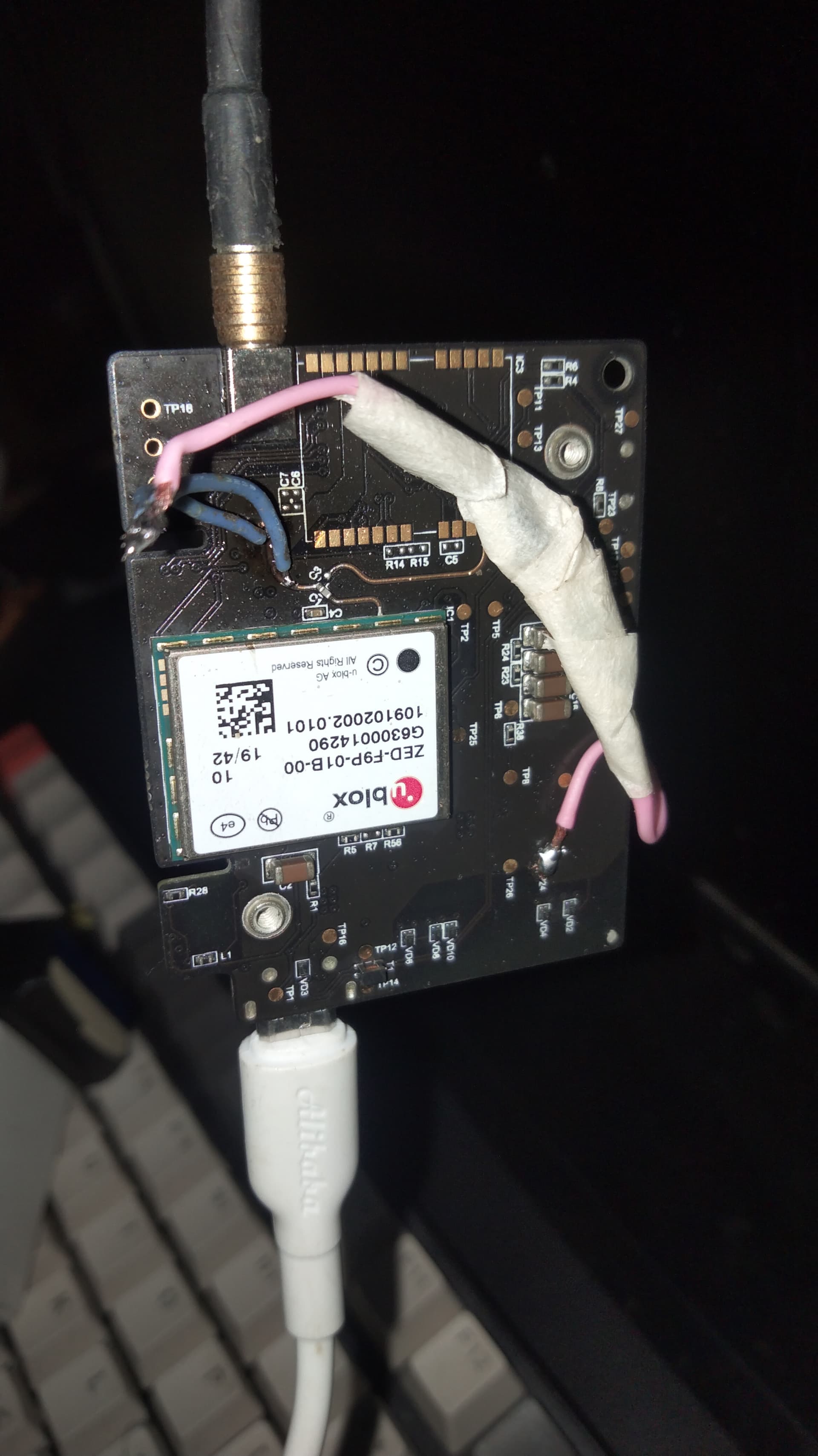

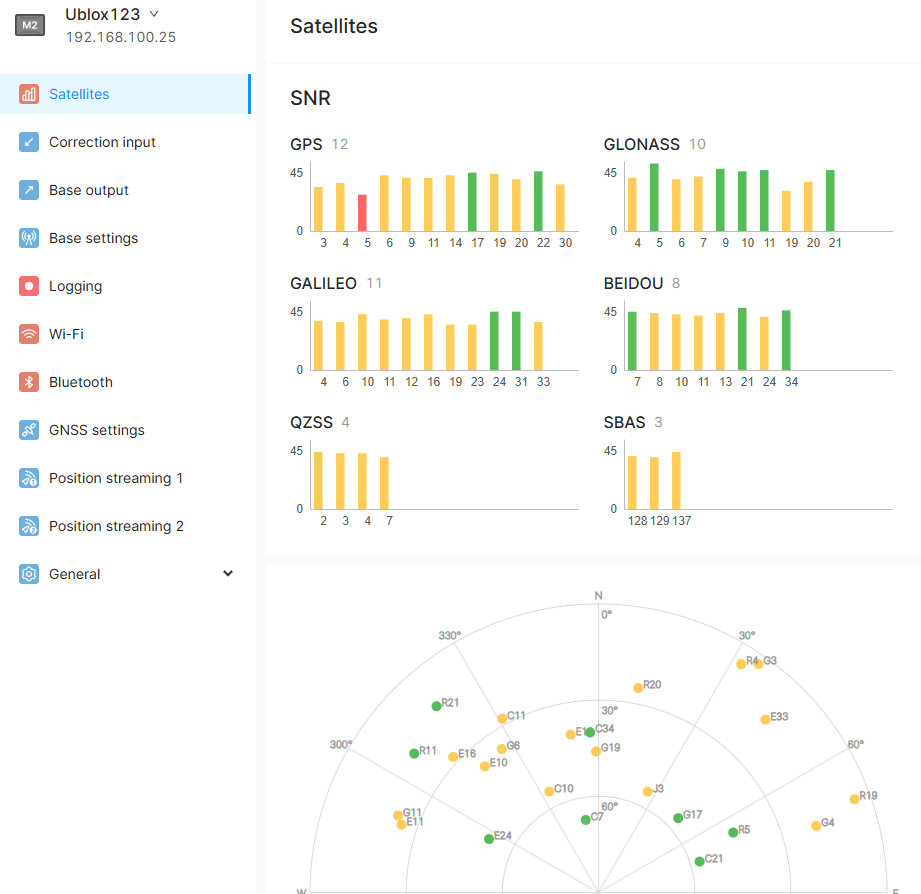

sorry for bad soldering but it works

[willknot37 (Yamete)]

[adrian.levy99 (Adrian Levy)]

Thanks for sharing your solution.
What did that link wire bridge?
How were you able to identify the problem?
What was the defective part?

[willknot37 (Yamete)]

my guess is i used a defective/loose antenna cable after that my m2 receivers do no show satellite bars and i read this trend above similar to my problem.

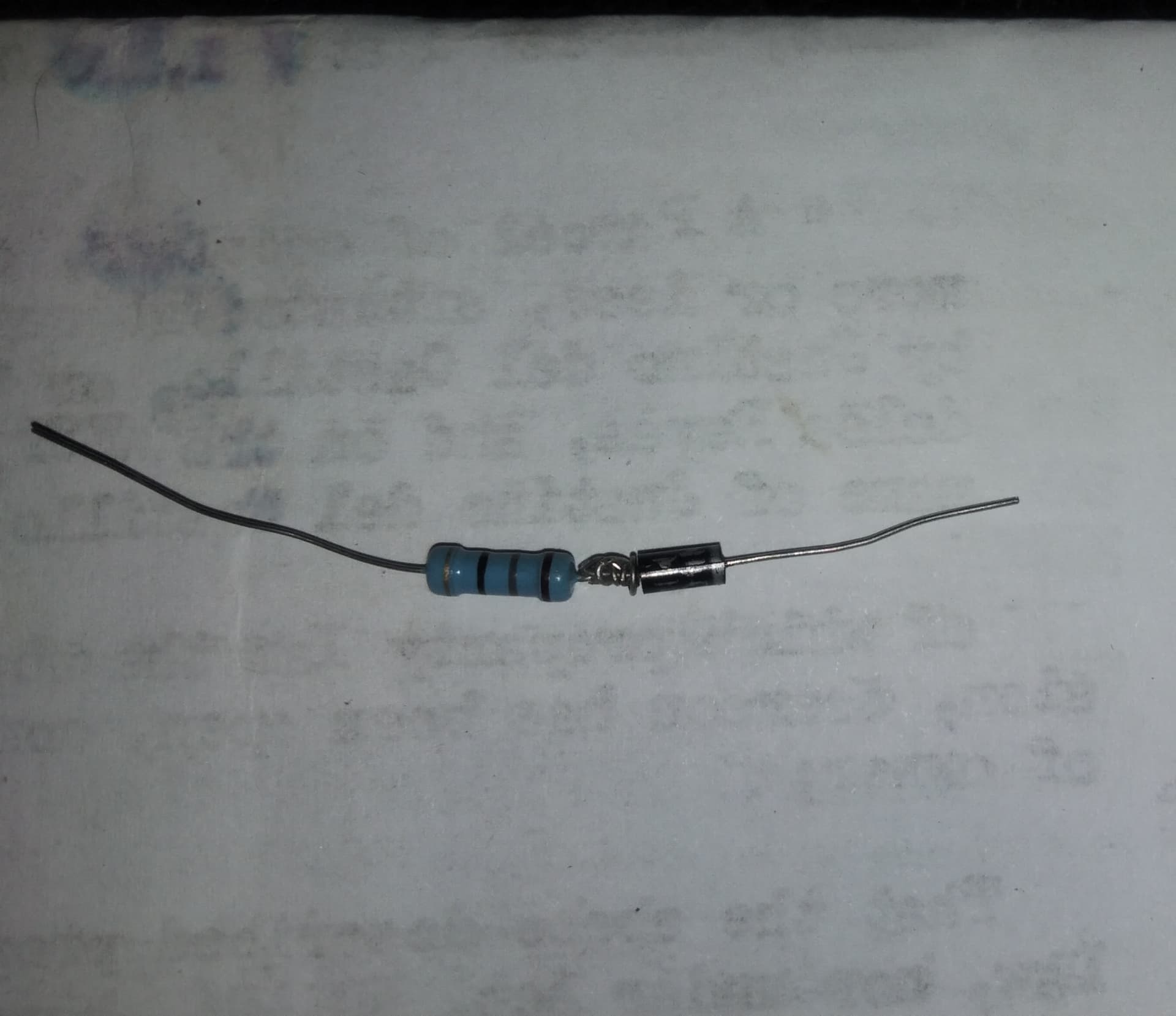

from that post you have to use 18ohms resistor and a diode
just be careful in soldering I’ve burn this terminal so i jumper two wires

[adrian.levy99 (Adrian Levy)]

Great work!
And thanks for sharing

[zipang]

Hi @willknot37

Congratulation for your repair.

I had contributed to design the solution in the previous post. Sadly we never knew if the issue is software (short circuit protection) or hardware related.

M2 repaired like this work well. The only drawback I noted is a slight increase in consumption at start up so with weak batteries the M2 doesn’t power up.

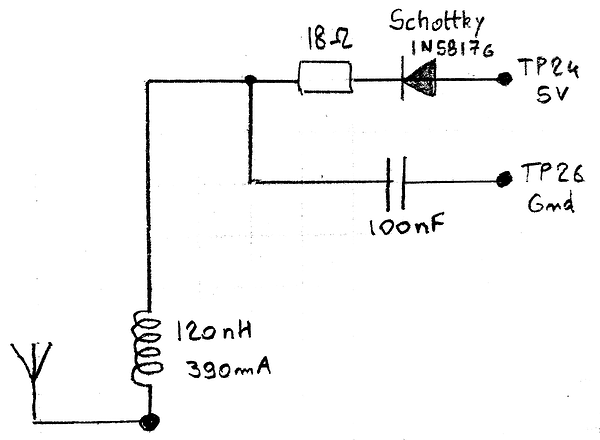

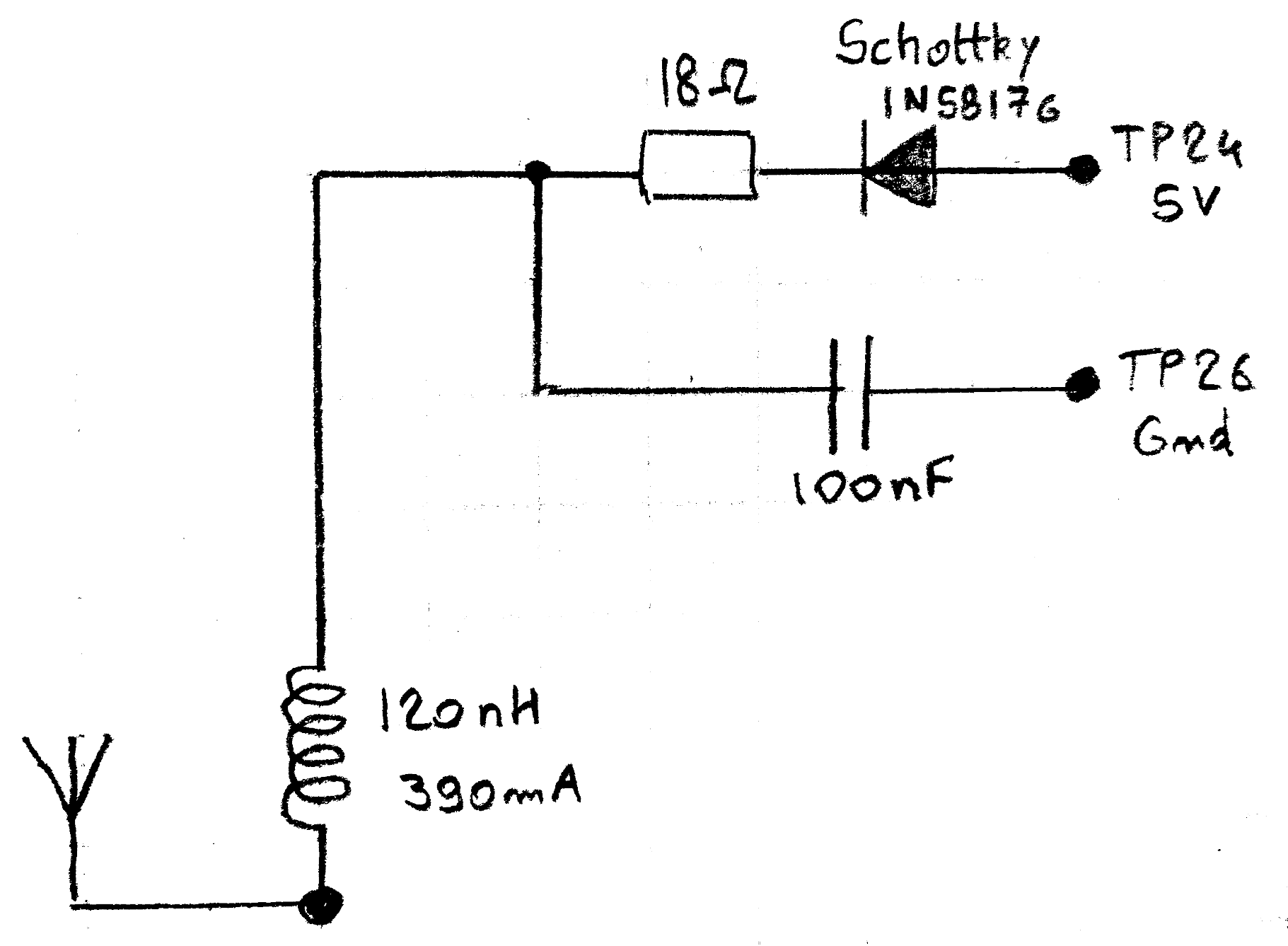

Since I tried a new design which seems to fix this issue :

[willknot37 (Yamete)]

thanks for sharing your new design.
