I am looking forward to paint show :sunglasses:

4 Likes
22

Yes, @TB_RTK I will do my best. Your paint skills are quite polished if I do say so myself.

2 Likes
23

Sorry for delay, busy losing drones… The task did not necessitate a paint show.

In QGIS import CSV from Reachview:

Add%20CSV
Add CSV.PNG771×477 47.5 KB

Setup the import correctly, check lat and long fields, Reachview survey coordinate EPSG 4326:

Import%20settings
Import settings.PNG1005×634 50.5 KB

Once imported in QGIS right click the layer and export, save feature as:

Export%20Options
Export Options.PNG1473×840 30.3 KB

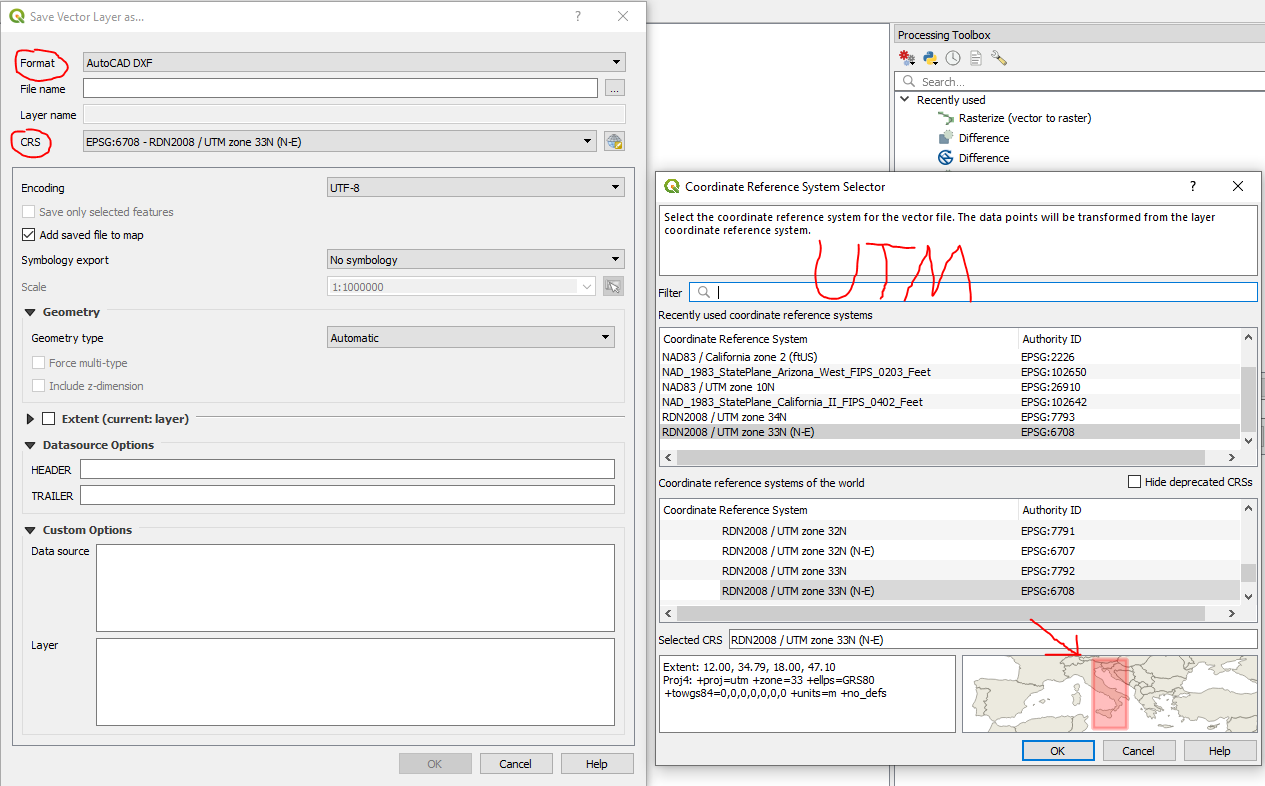

Choose AutoCAD DXF and be sure to select an appropriate coordinate system for XYZ, try UTM:

Export%20to%20DXF
Export to DXF.PNG1265×786 62.7 KB

This gives Z as ellipsoid height. Follow the above to derive geoid and orthometric heights for each point.
